Modular
Backlit
12 sizesA modular frame for backlit exhibition stands
MODULAR FRAME – PLUS is a straight modular system for a backlit back wall or complete exhibition stand.
Backlit module options include formats from 1 × 3 to 5 × 3. The 1 × 3 and 1 × 4 bridge options are supplied without LEDs.
Frame and stand details

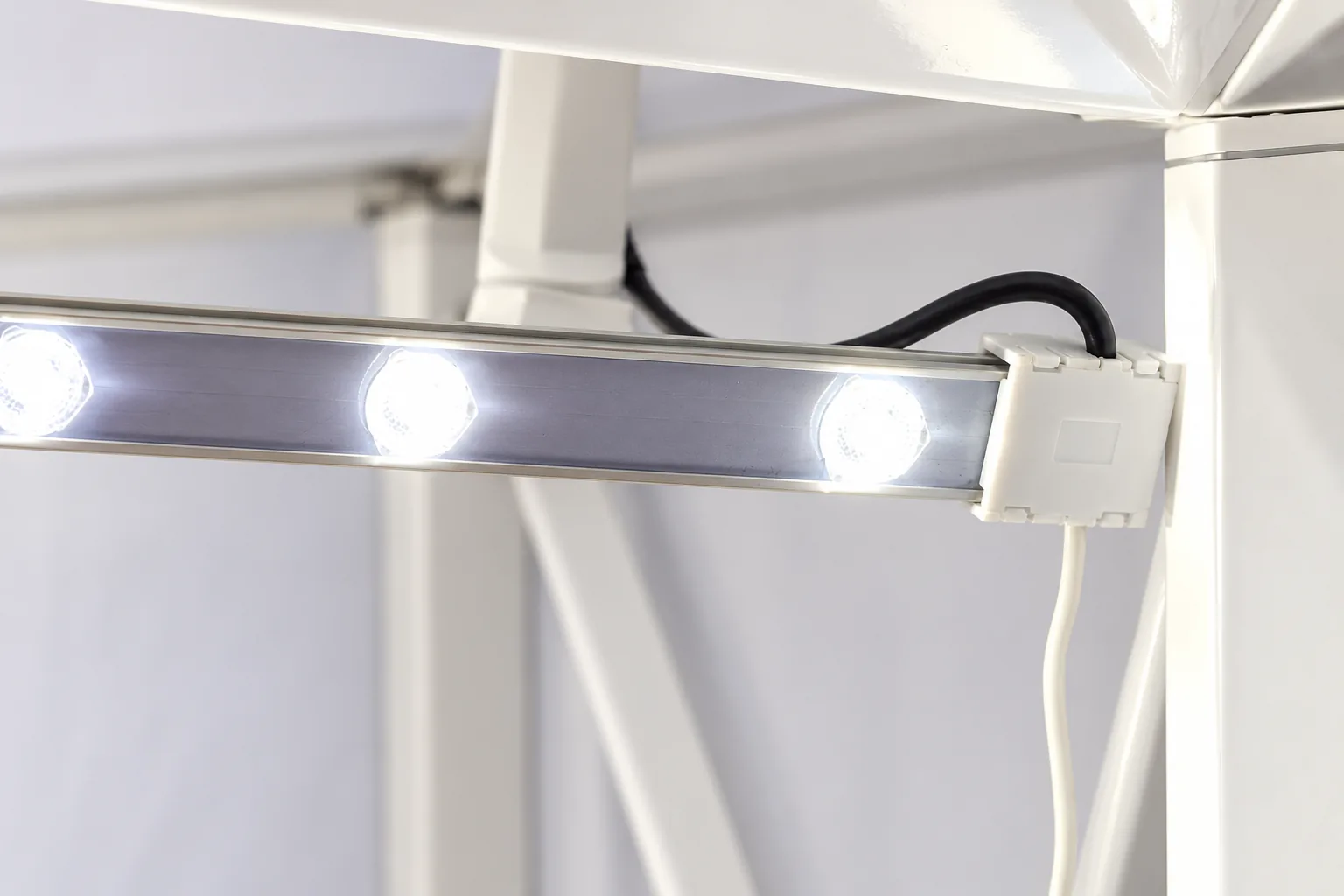

Backlit PLUS frame
The straight PLUS frame is designed for backlit modular displays, with backlit options including 3 × 3, 4 × 4 and 5 × 3.

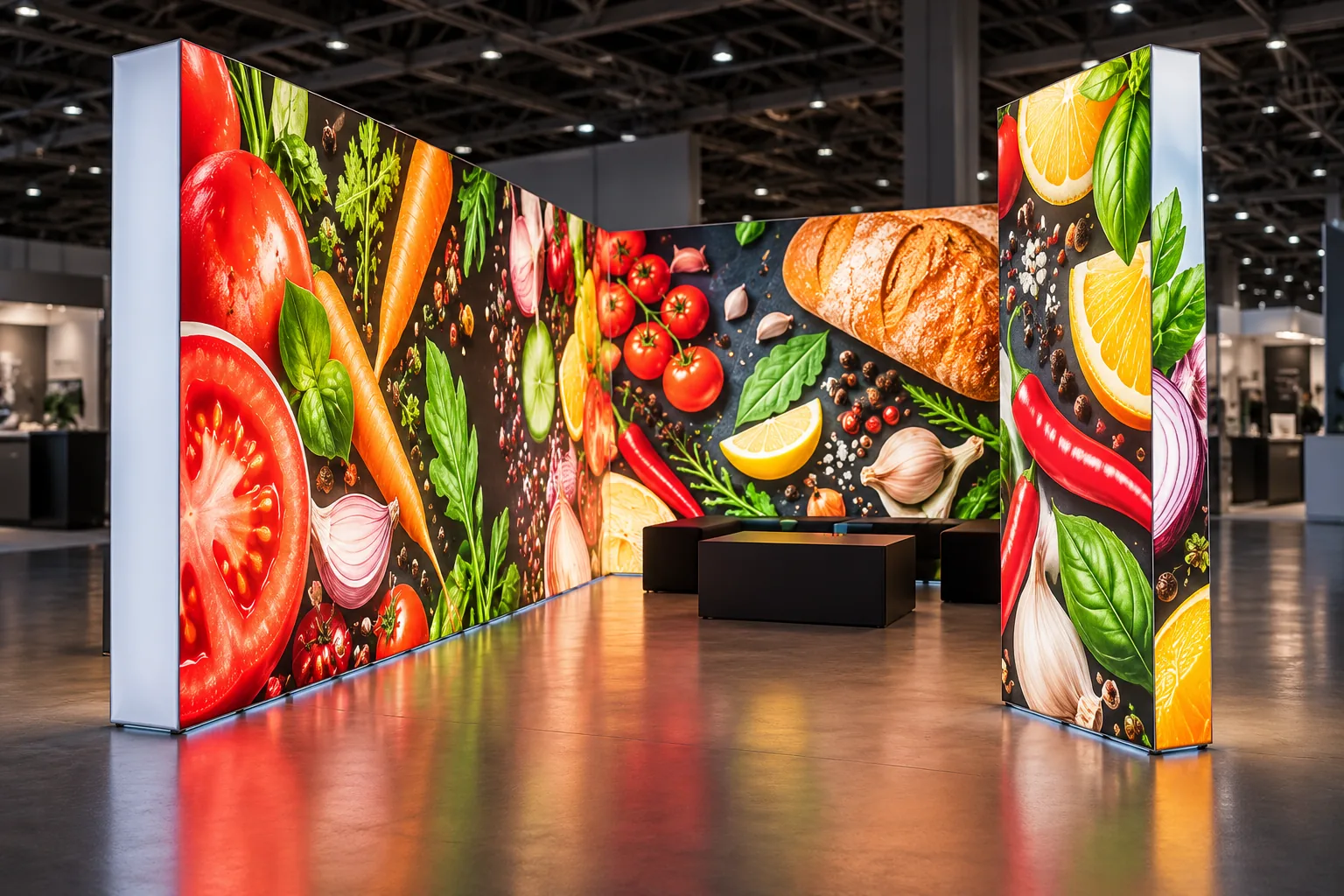

Wall or complete stand
Use the PLUS system for a backlit back wall or a complete exhibition stand. Bridge options are also available.
Technical data
| Items | Names | Sizes |
Weight |
Carton Size |
QTY/Europallet |
| 2412-PLUS | 1×2 Straight | 152x80x36,6cm |
10 kg |
95x37x22cm |
|
| 2413-PLUS | 1×3 Straight | 226x80x36,6cm |
12 kg |
95x37x22cm |
|
| 2414-PLUS | 1×4 Straight | 300x80x36,6cm |
10,7 kg |
95x37x22cm |
|
| 2423-PLUS | 2×3 Straight | 226x152x36,6cm |
15 kg |
97x37x22cm |
|
| 2432-PLUS | 3×2 Straight | 152x226x36,6cm |
15 kg |
95x37x22cm |
|
| 2424-PLUS | 2×4 Straight | 300x152x36,6cm |
16.6kg |
97x37x22cm |
|
| 2442-PLUS | 4×2 Straight | 152x300x36,6cm |
16.6 kg |
97x37x22cm |
|
| 2433-PLUS | 3×3 Straight | 226x226x36,6cm |
18 kg |
97x37x22cm |
|
| 2443-PLUS | 3×4 Straight | 300x226x36,6cm |
20 kg |
97x37x22cm |
|
| 2434-PLUS | 4×3 Straight | 226x300x36,6cm |
20 kg |
97x37x22cm |
|
| 2444-PLUS | 4×4 Straight | 300x300x36,6cm |
24 kg |
97x37x22cm |
|
| 2453-PLUS | 5×3 Straight | 375x226x36,6cm |
22,4kg |
97x37x22cm |
BACKLIT INSTRUCTIONS / MANUAL
Technical information
