96W LED
Assembly
ReplaceableA backlit display with a choice of heights

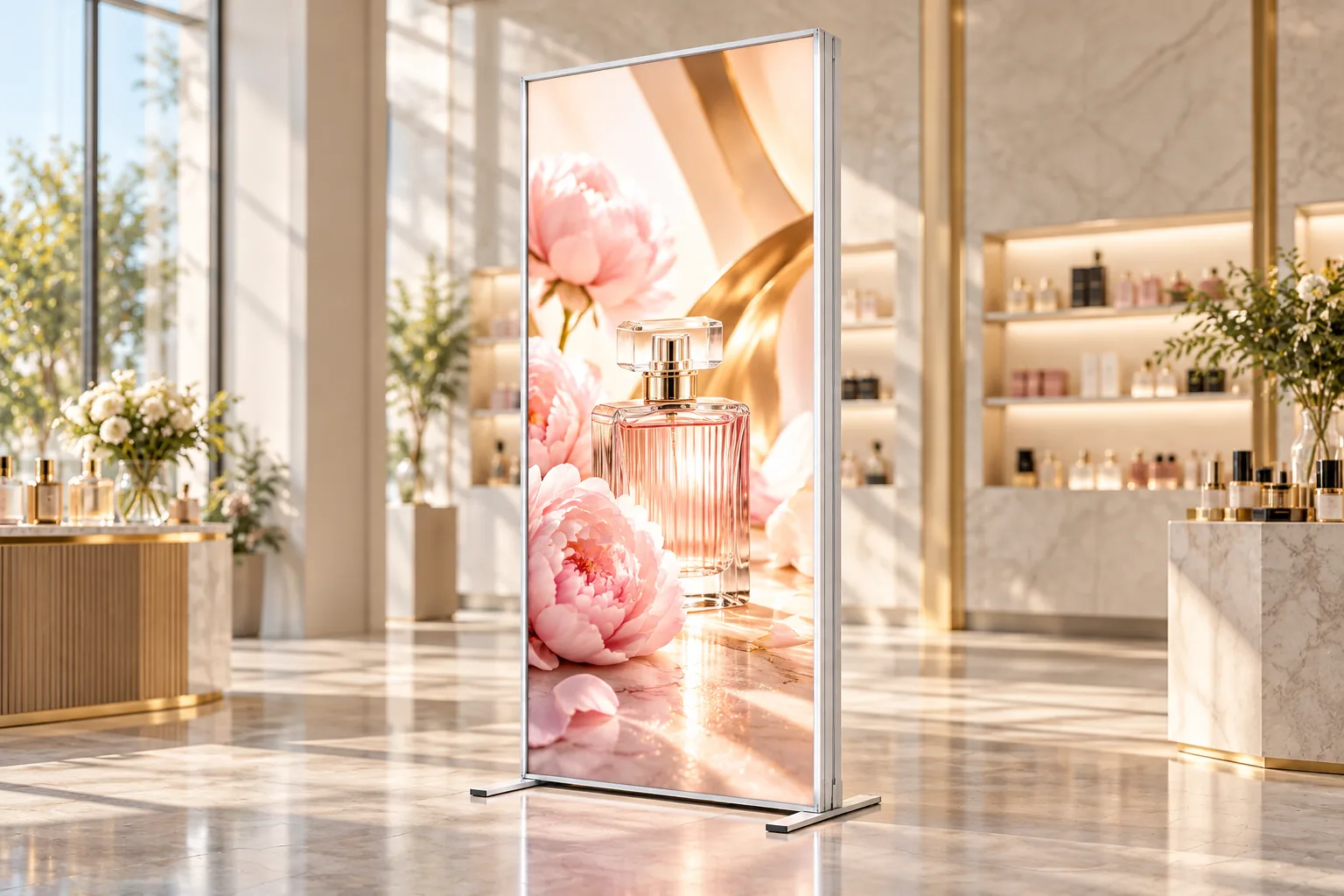

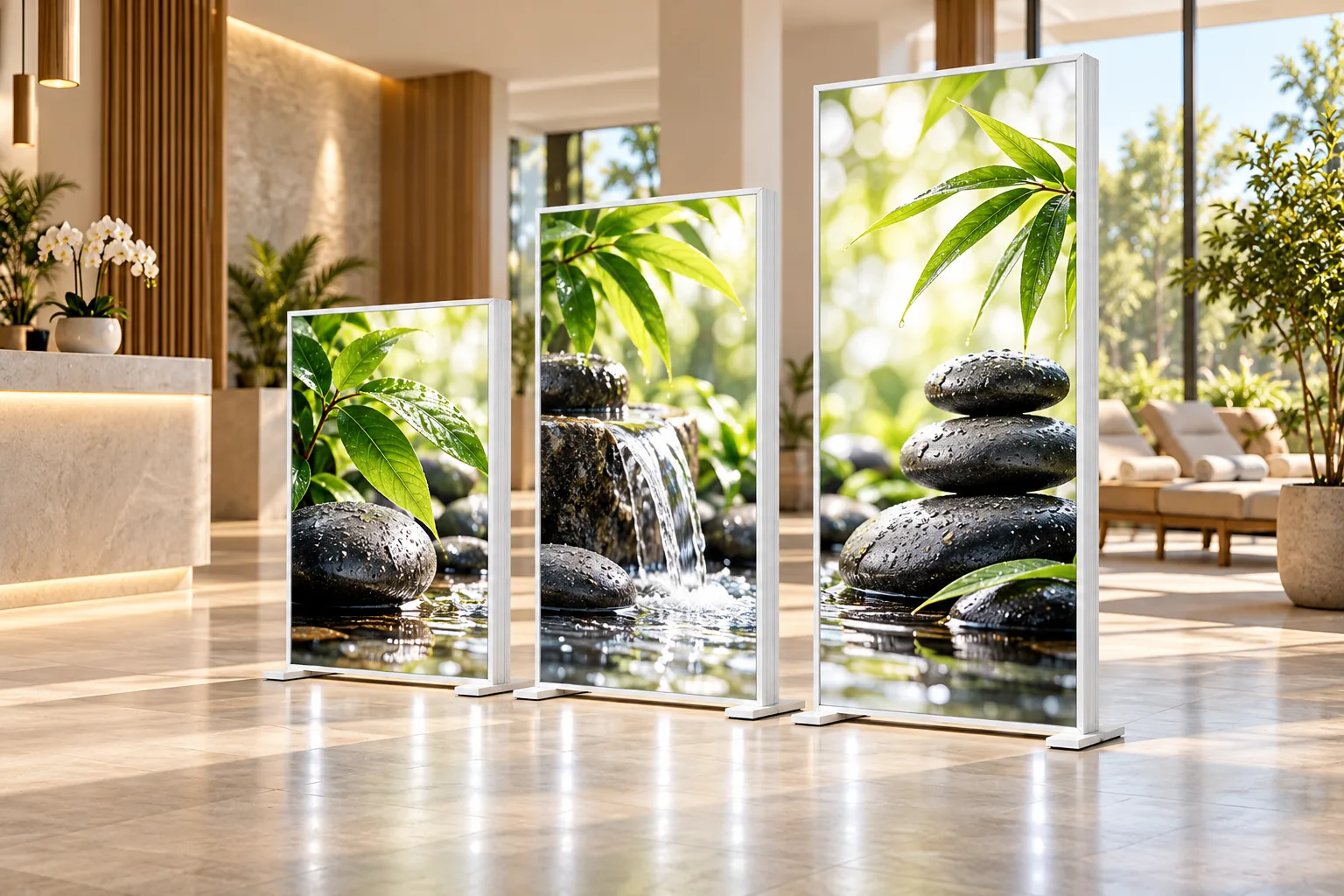

LIGHT BOX 100W combines integrated backlighting with individually printed textiles to highlight your message. It is 100 cm wide, with heights of 100, 150, 200, 225 and 250 cm available.
The lightweight plastic construction is easy to transport and assembles without tools. Matching print options are available for each size, and the textiles can be replaced when your message changes.
Assembly and textile details
Tool-free plug-in system
The intuitive plug-in system allows quick assembly within a few minutes, without tools.
Replaceable printed textiles
Individually printed textiles carry your design. They can be quickly and easily replaced to update the display.
Technical data
| ITEM | DESCRIPTION | SIZE | QTY/CARTON | CARTON SIZE | CARTON WEIGHT | QTY/EUROPALLET |
| 9530-100 | Light box 100x100cm | 100x100cm | 1 | 111x28x19 cm | 9,5 KG | |
| 9529 | Light box 100x150cm | 100x150cm | 1 | 112x39x19 cm | 11,3 KG | |
| 9501-200 | Light box 100x200cm | 100x200cm | 1 | 112x39x19 cm | 12,6 KG | |
| 9501-225 | Light box 100x225cm | 100x225cm | 1 | 111x43x19 cm | 13,3 KG | |
| 9501-250 | Light box 100x250cm | 100x250cm | 1 | 111x43x19 cm | 13,8 KG |
| LED quantity | 32 pieces |
| LED Unit Watts | 3W |
| LED Watts per frame | 96W |
| Lumen for each LED | 350-400 |
| Transformer | GM130W 24V/5A*1PC |
Technical Light Box + Layout – EN
Technical information
