A square 4 × 4 m tent that stands out
The 4 × 4 m tent gives you 16 m² of covered space on a strong 40 mm hardened aluminium frame, ideal for info points, sports events and outdoor promotions.
The spring-tensioned 420D PVC-coated polyester roof is available in yellow, blue, red, green, black and white, or printed with your own design.

Connectors and roof

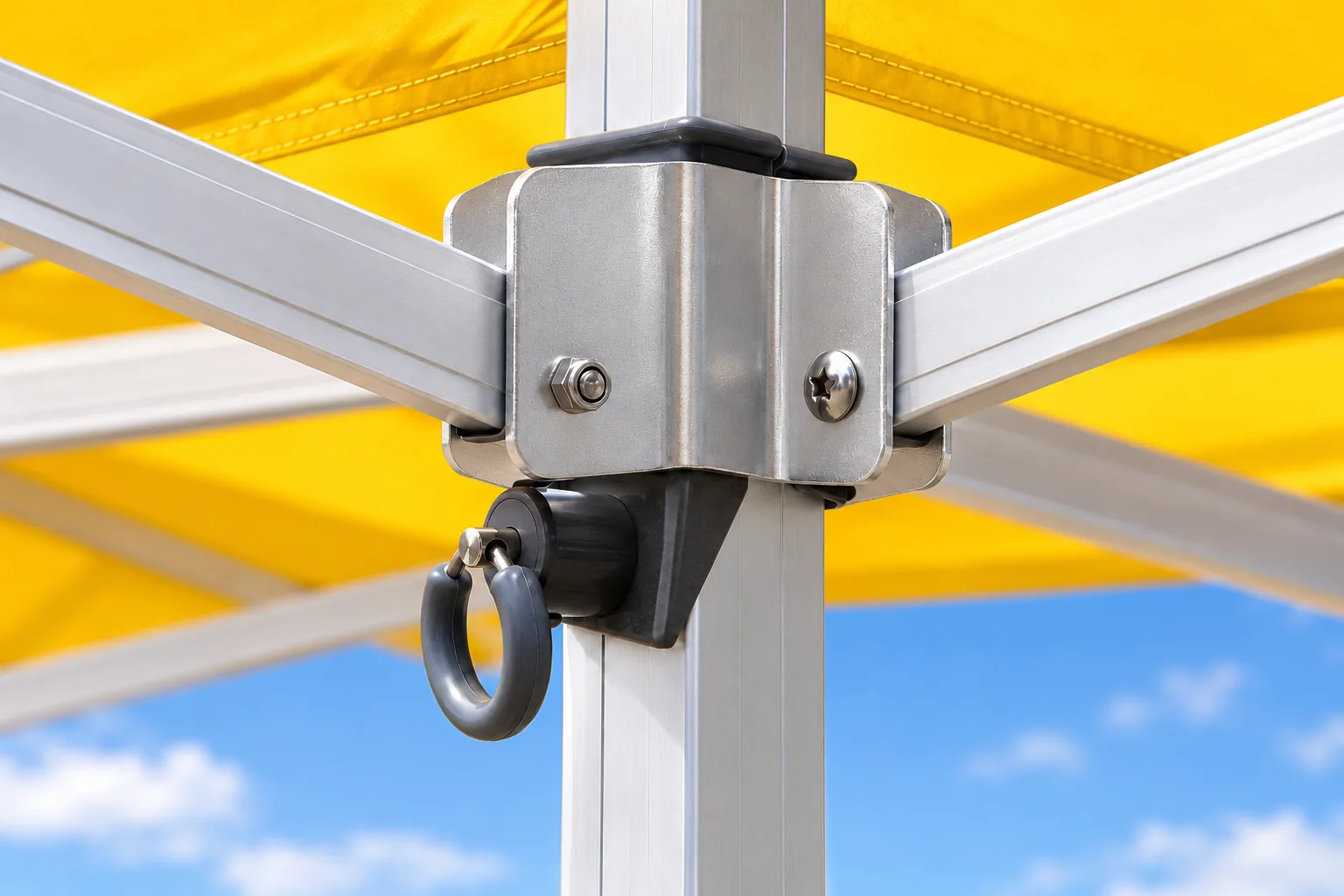

Extruded aluminium connectors
High-quality extruded aluminium connectors link the 40 mm square legs to the scissor frame, so the whole structure stays rigid.

Spring-tensioned roof
The 420D PVC-coated polyester roof is spring tensioned onto the frame for a tight, clean finish in every colour.

Technical data
40x40mm Aluminum frame
|
ITEM |
SIZE |
WEIGHT |
QTY/CARTON |
QTY/EUROPALLET |
CARTON SIZE |
|
7400 |
3x3m (40mm) |
27kg |
1 |
15pcs/405kg |
163x23x23cm |
|
7500 |
3×4.5m (40mm) |
35kg |
1 |
9pcs/315kg |
165x25x33cm |
|
7800 |
4x4m (40mm) |
41kg |
1 |
6pcs/246kg |
210x26x26cm |
|
7600 |
3x6m (40mm) |
49kg |
1 |
6pcs/294kg |
163x48x27cm |
|
7910 |
4x8m (40mm) |
60kg |
1 |
4pcs/240kg |
210x48x26cm |




All the connecting parts made of aluminum, no inferior PVC or fiberglass parts that retain their shape better and less inclined to break when it is cold or hot.
Roof
|
ITEM |
COLOUR |
MATERIAL |
WEIGHT |
QTY/CARTON |
QTY/EUROPALLET |
CARTON SIZE |
|
7801-W |
White |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-B |
Black |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-NB |
Navy blue |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-G |
Green |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-R |
Red |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-Y |
Yellow |
320gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
|
7801-FP |
Printed |
230gsm Polyester |
9kg |
1 |
36pcs/324kg |
13x55x55cm |
420D polyester with PVC Coating: 320gsm fabric
Dye Sublimation Fabric: 600D Polyester with PU Coating, 230gsm
Option – Full color print
6 Available colors









Layout & Technical
Technical information
